250mm 15mesh Stainless Steel Johnson Wire Wrap Strainer Pipe Screen with Flange Connection
Product Introduction:
Anping County Xinlu Wire Mesh Products Co., Ltd is proud to offer our 250mm 15mesh Stainless Steel Johnson Wire Wrap Strainer Pipe Screen, designed with a flange connection for secure and efficient filtration processes. Crafted from premium stainless steel, these screens provide durability and resistance to corrosion, making them ideal for a wide range of applications.
Product Specifications:
| Specification | Description |
| Diameter | 250mm (10") |
| Mesh Size | 15mesh |
| Length | 1 meter |
| Steel Pipe | Φ150mm x 50mm |
| Flange | Φ250mm x 15mm |
| V-Wire Openings | 1.3mm |
| Wire Dimensions | L = 2.3mm, H = 3.5mm minimum |
| Support Rod Dimensions | 2.5x4mm |
| Material | Low Carbon Galvanized Steel (LCG) and Stainless Steel (SS-304) |
| End Connection | Plain beveled ends for butt welding or threaded |
Technical Specifications:
- Sizes: NB 1.5", 2", 3", 4", 6", 8", 10", 12", 14"
- Slot Sizes: 0.15mm, 0.25mm, 0.50mm, 0.75mm, 1.00mm, 1.50mm, 2.00mm, 3.00mm
- Lengths: 6 Mts. & 3 Mts.
- Grades: Suitable for tube well depths up to 300 ft., 600 ft., 900 ft., and 1500 ft.
Stainless Steel Johnson Wire Wrap Strainer Pipe Screen Specification
|
SIZE
(INCH) | O.D (MM) | SLOT (MM) | LENGTH (M) | COLLAPSE STRENGTH (BAR) | TENSILE WEIGHT (TON) | WRAP WIRE (WIDTH*HEIGHT) (MM) | RODS (MM) |
| 3-1/2 | 88.9 | 1.0 | 3 | >22 | 10.2 | 2.3x3.5 | 3.8MM/22 |
| 4-1/2 | 114.3 | 1.0 | 3 | >28 | 11.5 | 2.3x3.5 | 3.8MM/22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | >40 | 12.8 | 2.3x3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | >33 | 12.8 | 2.3x3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | >83 | 45 | 3.2x6.0 | 6.0MM/32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | >34 | 21.9 | 2.3x3.5 | 3.8MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | >50 | 38.2 | 3.0x5.0 | 4.0MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | >60 | 46 | 3.2x6.0 | 5.0MM/48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | >50 | 32.9 | 2.3x3.5 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | >60 | 39.5 | 3.0x5.0 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | >100 | 48 | 3.2x6.0 | 5.0MM/55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | >120 | 37.2 | 3.0x5.0 | 4.0MM/50 |
| 14 | 355.6 | 1.0 | 3 | >80 | 37.8 | 3.0x5.0 | 4.0MM/59 |
| PROFILE WIRE | | | | | | | | |
| WIDTH(mm) | 1.00 | 1.50 | 1.50 | 2.00 | 2.30 | 2.50 | 3.00 | 3.05 |
| HEIGHT(mm) | 2.00 | 2.00 | 2.50 | 3.80 | 3.50 | 4.00 | 4.60 | 6.35 |
| SUPPORT ROD | | | | | | ROUND |
| WIDTH(mm) | 1.80 | 2.00 | 2.50 | 3.00 | 3.00 | Ø2.5--Ø6mm |
| HEIGHT(mm) | 2.50 | 3.00 | 4.00 | 4.60 | 6.00 | ---- |
Applications:
Our Johnson Wire Wrap Strainer Pipe Screens are versatile and can be used in various industries, including:
- Water wells
- Juice and beer production
- Water supply systems
- Refining and petrochemical
- Filter equipment
- Drum filters
- Sand control
- Groundwater extraction
- Pump and motor filters
- Dewatering processes
- Pharmaceutical applications
- Architecture and construction
- Food and beverage filtration
- Mineral and aggregate processing
- OEM screen components
- Pulp and paper industry screens
- Waste water treatment
Customization and Quality Assurance:
We offer customization services to meet your specific project requirements. Our commitment to quality includes:
- Specialized Quality Control: Each production step is monitored by dedicated personnel.
- Professional Engineering: Our engineers ensure that every product meets the highest standards.
Frequently Asked Questions:
Q1: Can I have a sample order?
A: Yes, we welcome sample orders to test and check quality.
Q2: What about the lead time?
A: 3-5 days for sample preparation, 15-25 working days for mass production.
Q3: Do you have any MOQ limit for the order?
A: Low MOQ, with 3pcs available for sample checking.
Q4: How do you ship the goods and how long does it take to arrive?
A: We offer various shipping options, including express shipping which takes 5-7 days.
Q5: How to proceed an order?
A: Share your specifications, receive a quote, confirm and place a deposit, and we will arrange production.
Q6: Is it OK to print my logo on the product?
A: Yes, please inform us before production for logo printing.
About Anping County Xinlu Wire Mesh Products Co., Ltd:
As a leading manufacturer of wire mesh products, we are committed to delivering innovative and high-quality filtration solutions. Our focus on customer satisfaction and product excellence ensures that you receive the best products and services in the industry.
Product Tags:
|
|

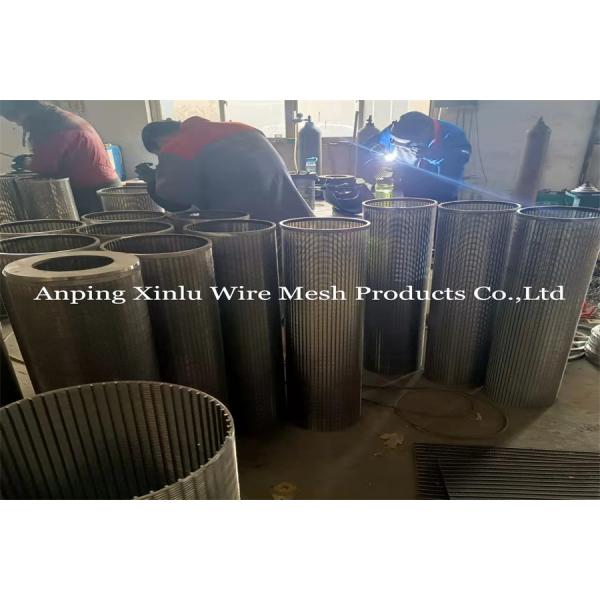

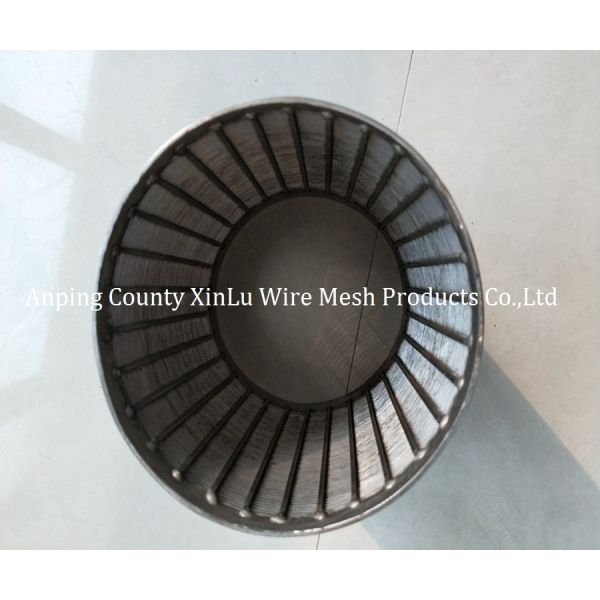

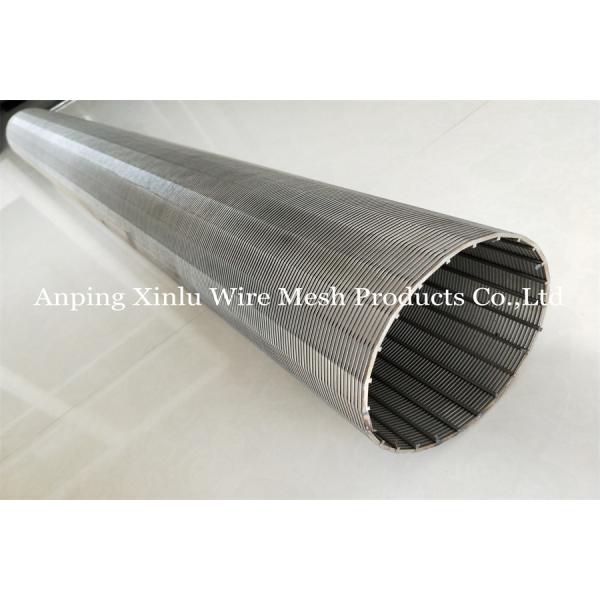

250mm 15 Mesh Stainless Steel Johnson Wire Wrap Strainer Pipe Screen Connection Flange Images
|
