DN32-219mm Stainless Steel 316L Johnson Wedge Wire Lateral pipe Assemblies
Water Distributor, also called Lateral Water Distributor, is to arrange the water volume according to a certain rule in a certain working area. The most common is to distribute water evenly on the working surface.
DN32-219mm Stainless Steel 316L Johnson Wedge Wire Lateral Pipe Assemblies by Anping County Xinlu Wire Mesh Products Co., Ltd.
[Anping County Xinlu Wire Mesh Products Co., Ltd.] offers DN32-219mm Stainless Steel 316L Johnson Wedge Wire Lateral Pipe Assemblies, designed for efficient water distribution and filtration in various industrial applications.
Product Highlights:
- Even Water Distribution: Engineered to distribute water evenly across the working surface.
- Durable Materials: Constructed from 304 stainless steel with the option to customize to 316 stainless steel for corrosive environments.
- Versatile Applications: Commonly used in mechanical filtration, activated carbon filtration, water softening, and demineralization equipment.
Technical Specifications:
- Wedge Wire Lateral Assemblies: Horizontal herringbone style screen laterals combined with a vertical secured round hub.
- Materials: Stainless steel, Hastelloy alloy steel, and other alloy steels for strength and corrosion resistance.
-

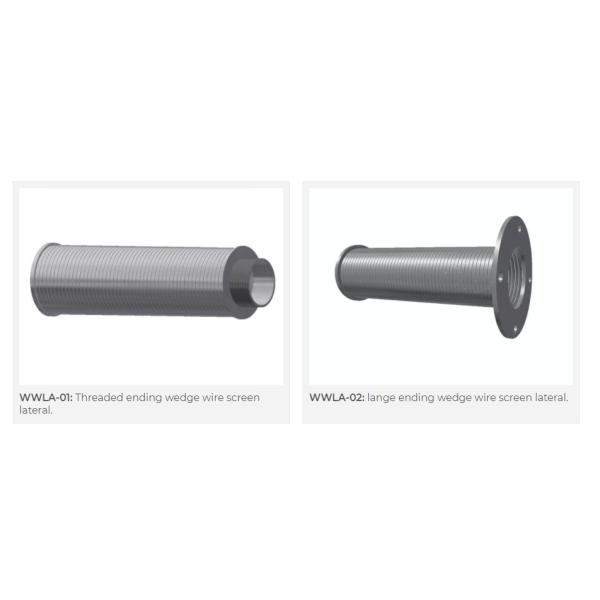

Because of the different lateral endings, the connection types of lateral assemblies are also different including thread connection and flange connection. Featured by the different designs, wedge wire lateral assemblies are widely used in under draining applications for filtering. Besides, it also can be used in various machines for screening.

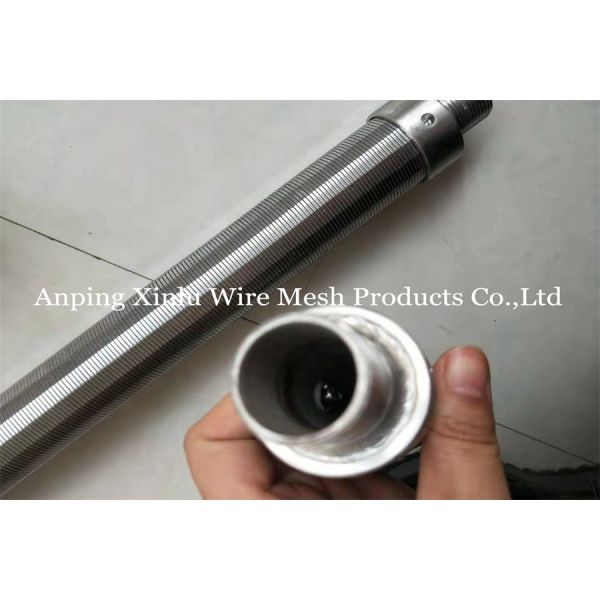

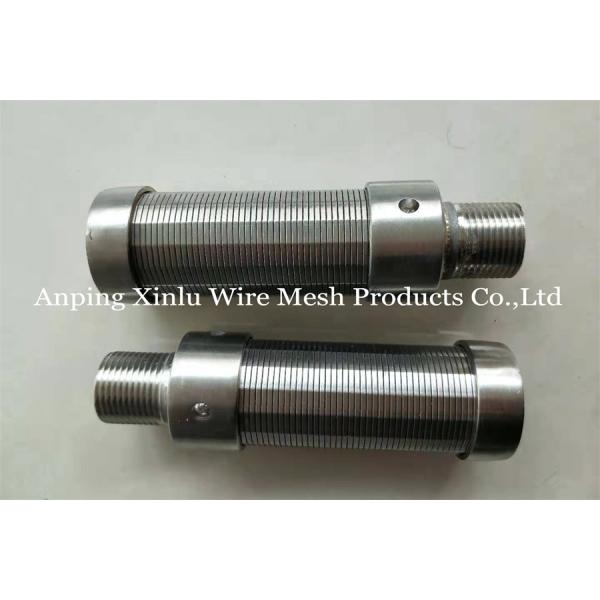

Because of the different ending of wedge wire screen lateral, the connection type is different. Commonly the wedge wire screen laterals are installed onto the vertical hub by threaded. Sometimes, the screen laterals are bolted onto the round hub through flanges on the screen laterals and round hubs.

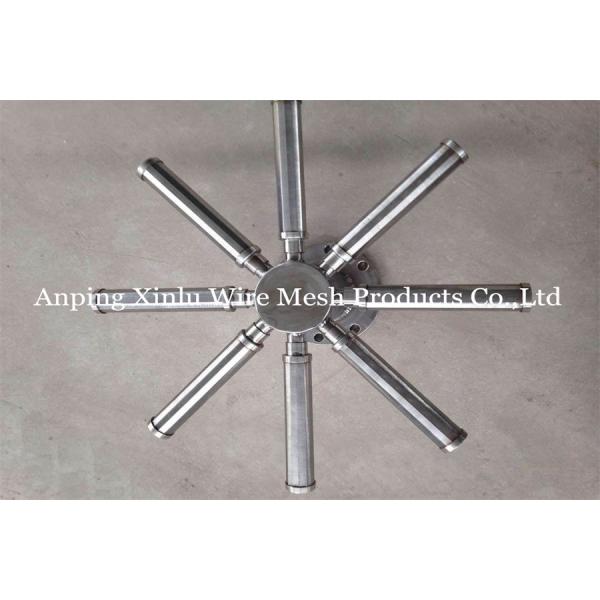

Hub radial lateral is another type of lateral assemblies. It is composed of several screen laterals and a central hub.
Hub radial lateral assemblies have lots of specs, including the slot size, screen lateral lengths, and assemblies diameter. Additional, the number of screen laterals can be customized. All size can be customed.
Johnson Wedge Wire lateral Pipe Specification:
| material | SS304, SS304L, SS316, SS316L, SS321, 904, C276, 2205, 2207, Duplex, Hastelloy, etc |
| Normal Lateral Tube QTY (PCS) | 4, 6, 8, 12,16, etc. According to request, actual flow rating, and application. |
| Lateral OD Range (mm) | 25 to 80mm, customized |
| Normal Hub (mm) | 108, 133, 219, Customized |
| Hub and lateral connector types | Thread, Flange |
| Diameter Range(mm) | According to the tank diameter. (Usually 200mm shorter than tank diameter) |
| Slot Range(mm) | Normal slot 0.2, 0.25, 0.3, 0.35, 0.4mm.Slot according to request. |
| Wedge Wire(mm) | 1x2 | 1.5x2 | 2x3 |
| Support Rod (mm) | 1.5x2.5,2x3 | 1.8x2.5,2x3 | 2x3,2x4 |
| Note | Customized According To Requirement |
Customization and Applications:
- Custom Specifications: Available in various slot sizes, screen lateral lengths, and assembly diameters.
- Number of Screen Laterals: Customizable to fit specific project needs.
- Applications: Underdraining filtration, ion exchangers, cation exchangers, and mixed bed exchangers.
Ordering Process:
- Sample Orders: Welcome for quality testing; mixed samples accepted.
- Lead Time: 3-5 days for sample preparation, 15-25 working days for mass production.
- MOQ: Low MOQ, starting from 3 pieces for sample checking.
- Shipping: Options include airline, sea shipping, rail transportation, or express courier services (EMS, DHL, UPS, FedEx, TNT) with 5-7 days arrival.
- Order Process: Specification confirmation, quotation, order placement with deposit, and production arrangement.
- Logo Printing: Custom logo printing available upon request.
[Anping County Xinlu Wire Mesh Products Co., Ltd.] is your partner for customized stainless steel Johnson Wedge Wire Lateral Pipe Assemblies. Contact us today to discuss your specific filtration and water distribution needs.
